Ok, this title is deliberately provocative, but the goal of this post is just to share some (as usual) “quick & dirty” tricks with all of you concerned about securing your Microsoft’s O365/Exchange/AzureAD online instances.

If you are facing the problem of having one or more services exposed on Microsoft cloud and want to have a clearer view of security configurations, it’s no easy to find the right path despite there are a ton of online resources about this subject.

Since I’m definitely not an expert, I often asked my friend @anformato for help and he always gave me useful tips. So when I later proposed him to write a post together on this topic in order to share “real life” experiences, he enthusiastically accepted.

In this first part we will talk about the Azure Active Directory “ecosystem”.

So let’s start from the beginning!

Azure Active Directory

Probably you have your on premise Active Directory Domain/Forest replicated with your online Azure AD instance, right?

Don’t replicate everything

You should carefully evaluate which objects you really need to synchronize and avoid to replicate everything. Remember “less is more”, and the more you replicate, the more you enlarge a possible attack surface.

Synchronize only the necessary objects (like users,) who really need to access online services. It’s also good practice not replicating administrators and other high privileged users. Azure AD admins should not be shared with on premise admins and vice versa (more on this in the dedicated chapter)

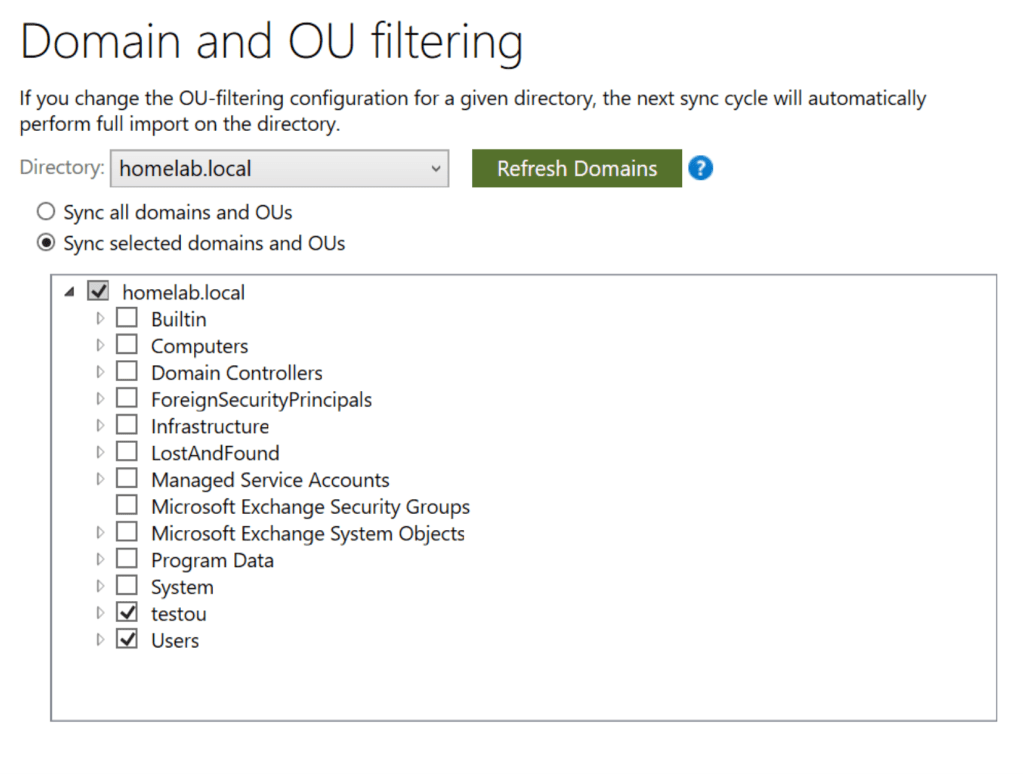

Replication can be easily configured with the “Azure Active Connect” tool:

Remember to perform this task before the first synchronization, otherwise it will be painful to remove unnecessary objects replicated to Azure AD (I had to open a case with MS support…)

Limit Administrative Access

Reducing the number of persistent Global Administrators is really a good practice.
Since only another GA can reset a global admin’s password, you should have at least 2 Global Admin users. (Microsoft recommends do not have more than 4/5 GAs, do you really need more than 5 GA’s?)

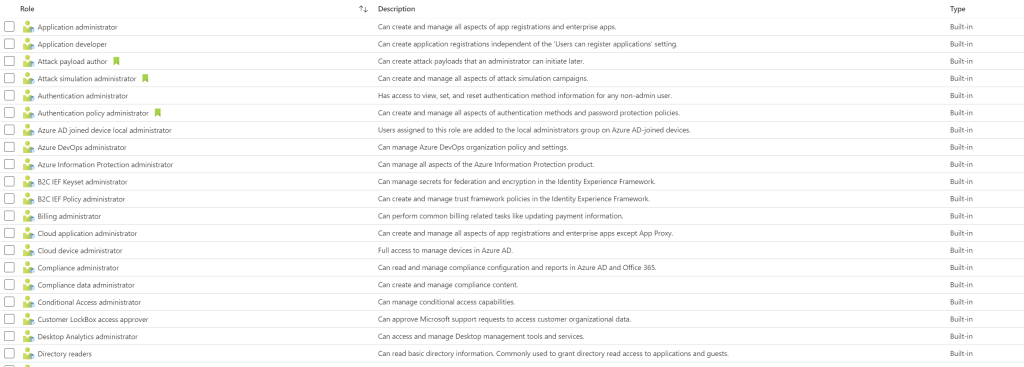

Azure AD roles allow you to grant granular permissions to your admins, providing you a way to implement the principle of least privilege. There are a bunch of predefined roles which you should definitely take in consideration for delegating administrative tasks.

A good starting point to understand Role Based Access control is here.


You should not use account with admin roles to manage administrative tasks, instead create dedicated accounts for each user with administrative privileges; those account should be cloud only account with no ties to on-premises Active Directory.

If your tenant has Azure Active Directory P2 licenses, a good practice is using Privileged Identity Management. It allows to implement just-in-time privileged access to Azure resources and Azure AD with approval flows.

All admin users must obviously use MFA, better with MS Authenticator App instead of using SMS or phone call as second authenticator factor. You should definitely avoid using personal account to manage M365 or Azure resources.

Last but not least: In order to prevent being accidentally locked out of your Azure Active Directory, have in place a procedure to manage emergency access. Ask yourself what will happen if service is currently unavailable because of network issue or IdP outage, or natural disaster emergency, or other GA users are not available?
Some procedures to manage emergency can be found here.

Restrict access to Azure Portal

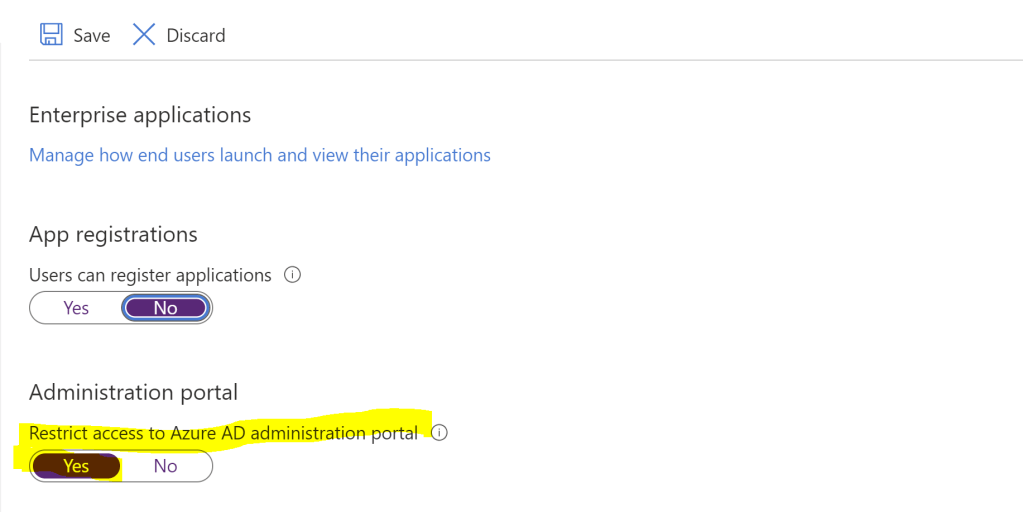

By default, every Azure AD user can access the portal even without specific roles. This means they can access the entire directory and get information about AD settings including users, groups, and so on. You might argue, ok a standard Active Directory user can also access all this information on the on premise site, why should I care? Remember, your Azure AD is normally exposed all over the internet, so if the user is compromised it would be a juicy option for an attacker, do you agree? We will talk about it later..

Keep in mind that restricting access to portal does not block access to the various Azure API’s

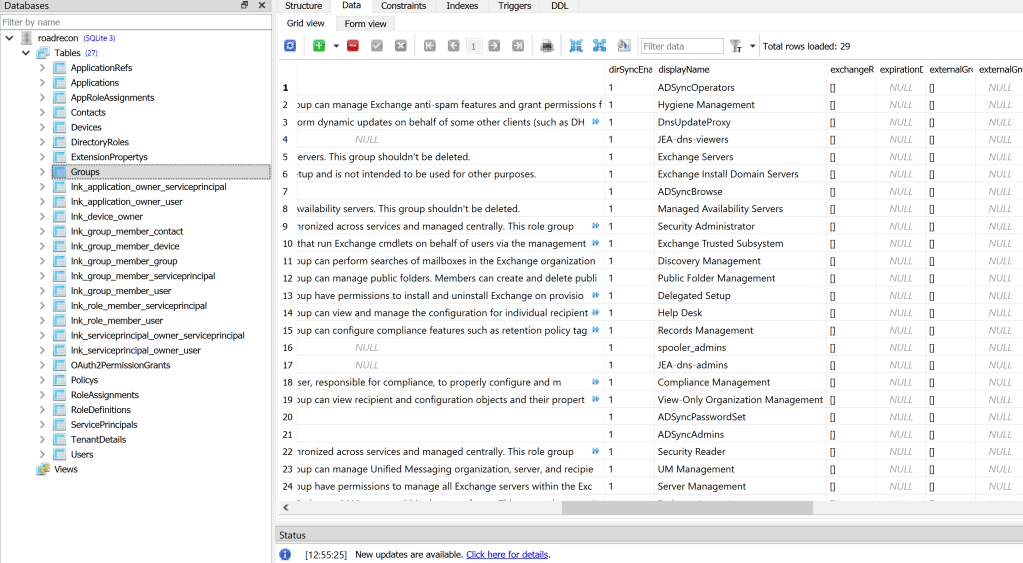

Third party tools such as @_dirkjan fantastic “roadrecon“, which interacts with some “undocumented” MS Graph API , allow you to dump the whole directory for later investigations and analysis

Restrict access to MSOnline powershell module

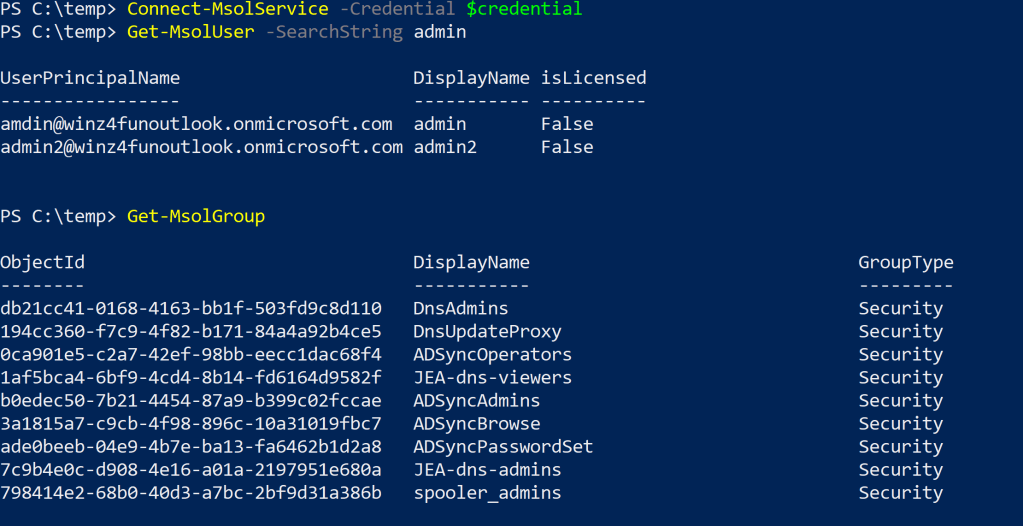

This module provides a lot of powershell cmdlets for administering Azure AD. Even if it’s now deprecated, it’s still available and a standard user can by default access the MSOL service and run lot of “get-msol*” commands.

So the question is: how can we stop this? Well, the answer is very simple, as as an admin launch this command in an MSOL session:

This will prevent the possibility for a standard user (not admin) to read other user’s information and in fact inhibit most of the cmdlets:

And also block “roadrecon” tools:

..and AADinternals tools too:

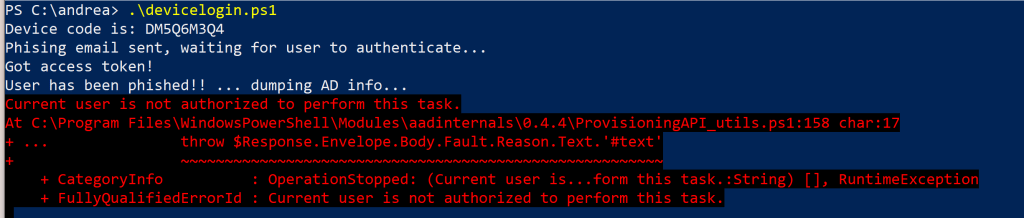

This will also somehow “stop” the dangerous phishing technique via “device code authentication” as described here.

But keep in mind that it will not inhibit other operations, such as sending an email on behalf the victim once obtained the access token. For preventing such types of attacks you should implement dedicated “Conditional access policies”, available with Premium subscriptions.

Back to us, what could be the side effect by setting this flag? To be honest, it’s not so clear. Googling around you can find some old posts stating that if “UsersPermissionToReadOtherUsersEnabled is set to false in Azure Active Directory (AAD), users are unable to add external/internal members in Microsoft Teams”.

We were unable to reproduce this misbehavior with Teams and there is no official note from MS about this. It seems that this problem has been resolved.

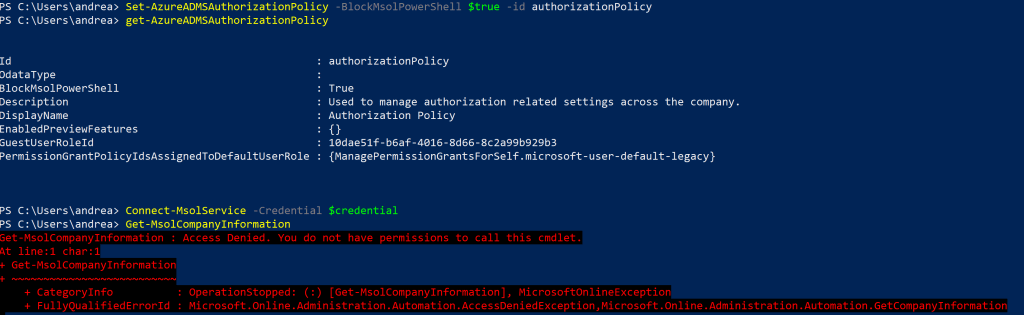

You can also completely block access to all MSOL cmdlets, including admins, with the AzureADPreview module:

Know what you are doing because it seems that there is not the possibility to add exception (for example: admin users).

Restrict access to AzureAd powershell module

Given that this module will be the replacement of the MSOL module, if you already disabled the permissions in MSOL cmdlet, the API won’t be available also in AzureAD:

You can even restrict access to the Azure AD powershell by assigning roles, as described here

$appId = "1b730954-1685-4b74-9bfd-dac224a7b894" #azuread

$sp = Get-AzureADServicePrincipal -Filter "appId eq '$appId'"

if (-not $sp) { $sp = New-AzureADServicePrincipal -AppId $appId}

$user = Get-AzureADUser -objectId <upn> #permit only to this user(s) to access Azure Ad PS

New-AzureADServiceAppRoleAssignment -ObjectId $sp.ObjectId -ResourceId $sp.ObjectId -Id ([Guid]::Empty.ToString()) -PrincipalId $user.ObjectId

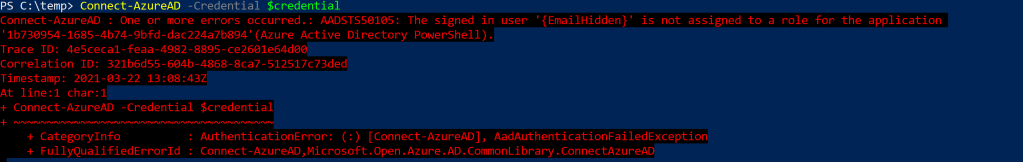

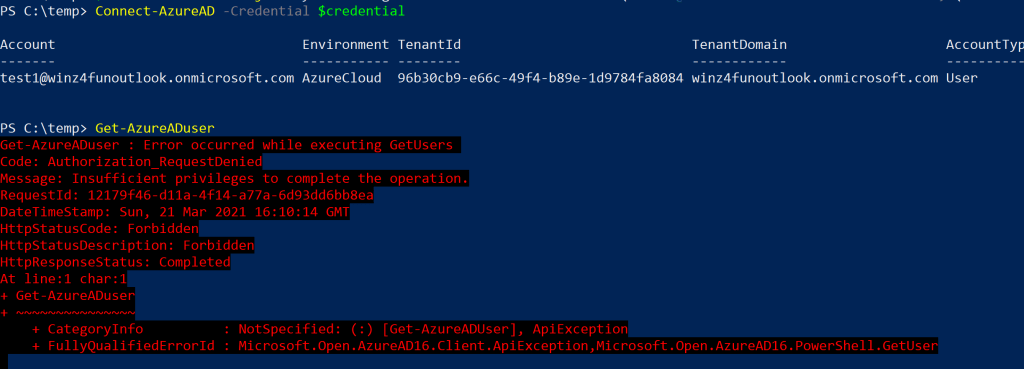

If user is not explicitly permitted, he cannot access:

Following the same procedure, you can also restrict access to MS Graph module (appid: 14d82eec-204b-4c2f-b7e8-296a70dab67e)

Disable Legacy Authentication

Disabling Legacy Authentication in a must-do if you are thinking about how to reduce your attack surface.

Legacy Authentication refers to all protocols that use the unsecure Basic Authentication mechanism and if you don’t block legacy authentication your MFA strategy won’t be effective as expected.

Among legacy authentication protocols are:

  • Exchange ActiveSync (EAS)
  • Exchange Web Services (EWS)
  • IMAP4
  • MAPI over HTTP (MAPI/HTTP)
  • RPC over HTTP
  • POP3
  • Authenticated SMTP
  • ….

Modern authentication is based on the Active Directory Authentication Library (ADAL) and OAuth 2.0 which support multi-factor authentication and interactive sign-in.

But blocking legacy authentication in your directory is easier to say than done .. you need to evaluate and understand the potential impacts before!

Starting from analyzing Azure AD sign-ins logs could be a good starting point.

  • Navigate to the Azure portal > Azure Active Directory > Sign-ins.
  • Add the Client App column if it is not shown by clicking on Columns > Client App.
  • Add filters > Client App > select all of the legacy authentication protocols. Select outside the filtering dialog box to apply your selections and close the dialog box

Unfortunately there is no magic “recipe”, you should avoid using applications which don’t support modern authentication 😦

For example, if you are still using the unsupported Outlook/Office 2010, it’s really time to upgrade to a newer version.

Blocking legacy authentication using Azure AD Conditional Access

The best way to block legacy authentication to Azure AD is through Conditional Access. Keep in mind it requires at least Azure Active Directory P1 licenses.

You can directly and indirectly block legacy authentication with CA policies and include/exclude specific users and groups as shown here

Consider to enable your blocking policy in Report-only mode to monitor impacts before changing the state of the policy from “Report-Only” to “On”.

Blocking legacy authentication service-side

If you don’t have Azure AD P1 or P2 licenses, the good news is that nothing is lost! Legacy authentication can be blocked service-side or resource-side.

Exchange Online

The easiest way is just to disable the protocols which by default use legacy authentication like Pop3, Imap, …

This can be done via exchange management powershell:

Get-CASMailbox -Filter {ImapEnabled -eq "true" -or PopEnabled -eq "true" } | Set-CASMailbox -ImapEnabled $false -PopEnabled $false

With this commands you will disable Imap and Pop3 for all mailbox users. Once done, you can enable only a specific subset of users who really need to use these protocols.

You can also set a global policy which will disable these protocols for all new mailboxes:

Get-CASMailboxPlan -Filter {ImapEnabled -eq "true" -or PopEnabled -eq "true" } | set-CASMailboxPlan -ImapEnabled $false -PopEnabled $false

The problem with this setting could be if you don’t want to block protocols that can do legacy and modern authentication. Exchange Online has a feature named authentication policies that you can use to block legacy authentication per protocol.

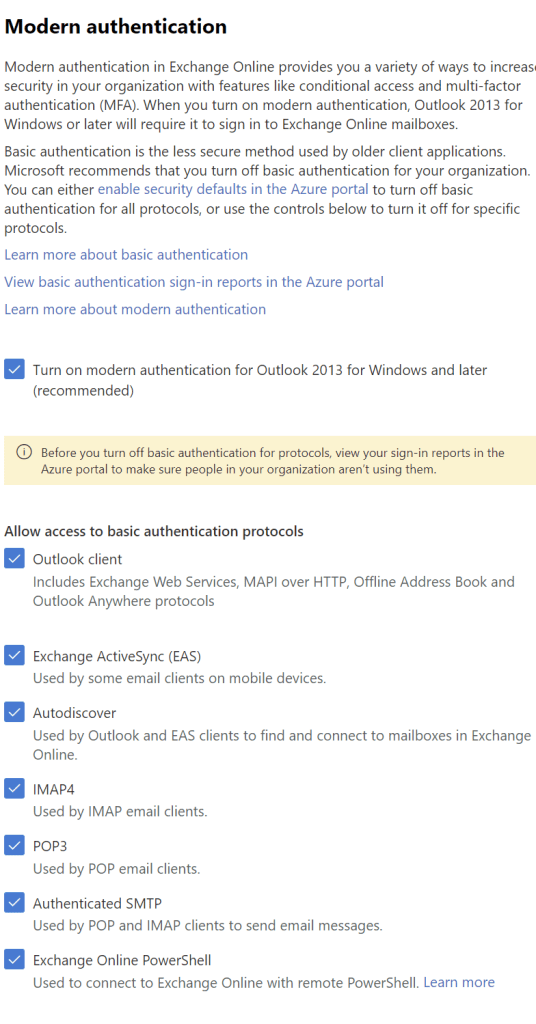

To manage authentication policy in Microsoft 365 Admin Center:

  • Navigate to the Microsoft 365 admin center
  • Settings > Org Setting
  • Navigate to Modern Authentication

You can even more fine grain these settings by allowing / disallowing basic authentication protocols for specific users using the authentication policies cmdlets:

New-AuthenticationPolicy -Name "Allow Basic Authentication for POP3"
Set-AuthenticationPolicy -Identity "Allow Basic Authentication for POP3" -AllowBasicAuthPop
Set-user -Identity pop3user@mydomain.local AuthenticationPolicy "Allow Basic Authentication for Pop3"

Sharepoint Online

In order to disable legacy authentication on your Sharepoint Online tenant you can use the follwoing cmdlets:

Connect-SPOService -Url –https://-admin.sharepoint.com
Get-SPOTenant
Set-SPOTenant –LegacyAuthProtocolsEnabled $false

AppLICATIONS, Consent and Permissions.. oh my..

The variegated world of the so-called “Applications” essentially have to interact with the ecosystem of O365 services exposed through public API and it’s up to you to manage and grant the appropriate permissions requested by the Apps. It’s a complex topic and in this chapter we will give you some simple advices. If security is your concern (I bet yes), the first thing to do is is to prohibit users consent for “unknown” apps, given that it’s allowed by default (??).

Why should you do it? Because by setting a more restrictive consent (as highlighted in the screenshot) will prevent most of the well known phishing techniques by abusing “malicious apps” and Oauth2. You can find an excellent example by @merlos here.

If the user clicks on the malicious link in the phishing email, he will no more have the possibility to accept the requested permissions:

But will be presented this screen where the Organization’s Admin approval is required:

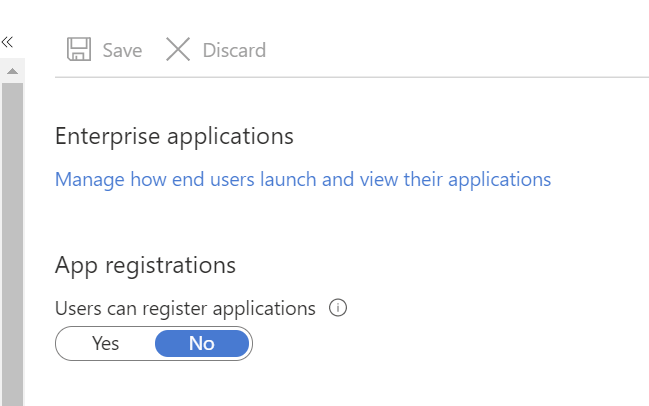

You should also disable “Users can register applications” feature

Only users with administrative roles or a limited subset of users with “Application developer” role  should be allowed to register custom-developed applications after these are reviewed and evaluated also from a security perspective.

Conclusion

In this short we hope to have given you some useful tips on how to somehow secure your tenants. The topic is clearly much more complex and requires dedicated skills, but as usual you have to start from the basics 😉

In next post we will (hopefully) write about logging, auditing, detecting .. stay tuned!

.. and adopt Two Factor Authentication (2FA) for all your users!!
